engineering joke

heatsinks for SOT-23
-F

they actually do make heatsinks for TO-92 though and just why
-F

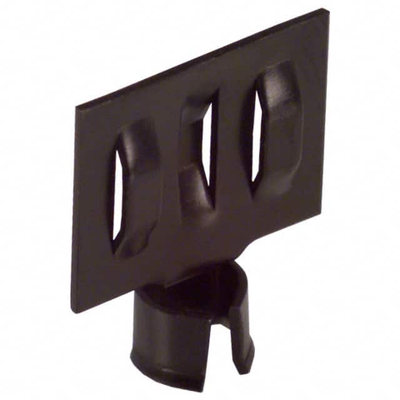

like look at this ridiculous looking thing

i almost want to find an excuse to use one just for how absurd it looks
-F

also it has an absurdly bad thermal resistance but what do you expect for something that just goes on top of a to-92 like a hat

it's rated for 60°C/W with natural convection, and 17.5°C/W with 400 LFM forced air flow

-F

@Felthry I was thinking looking at it ... like, we were studying heat transfer in grad school, looking specifically at electronic packaging

there are, like, so many layers creating thermal resistance between the heat-generating element and the heat sink in that design ... it's kinda impressive that they managed to make it better than nothing

- 🐲 💭

Follow

@packbat i guess almost anything would be better than nothing unless you use like styrofoam or something but yeah, there's... no way you should ever be using TO-92 if you need any sort of heat transfer

Even the metal version, TO-18, has pretty awful thermal properties
-F
